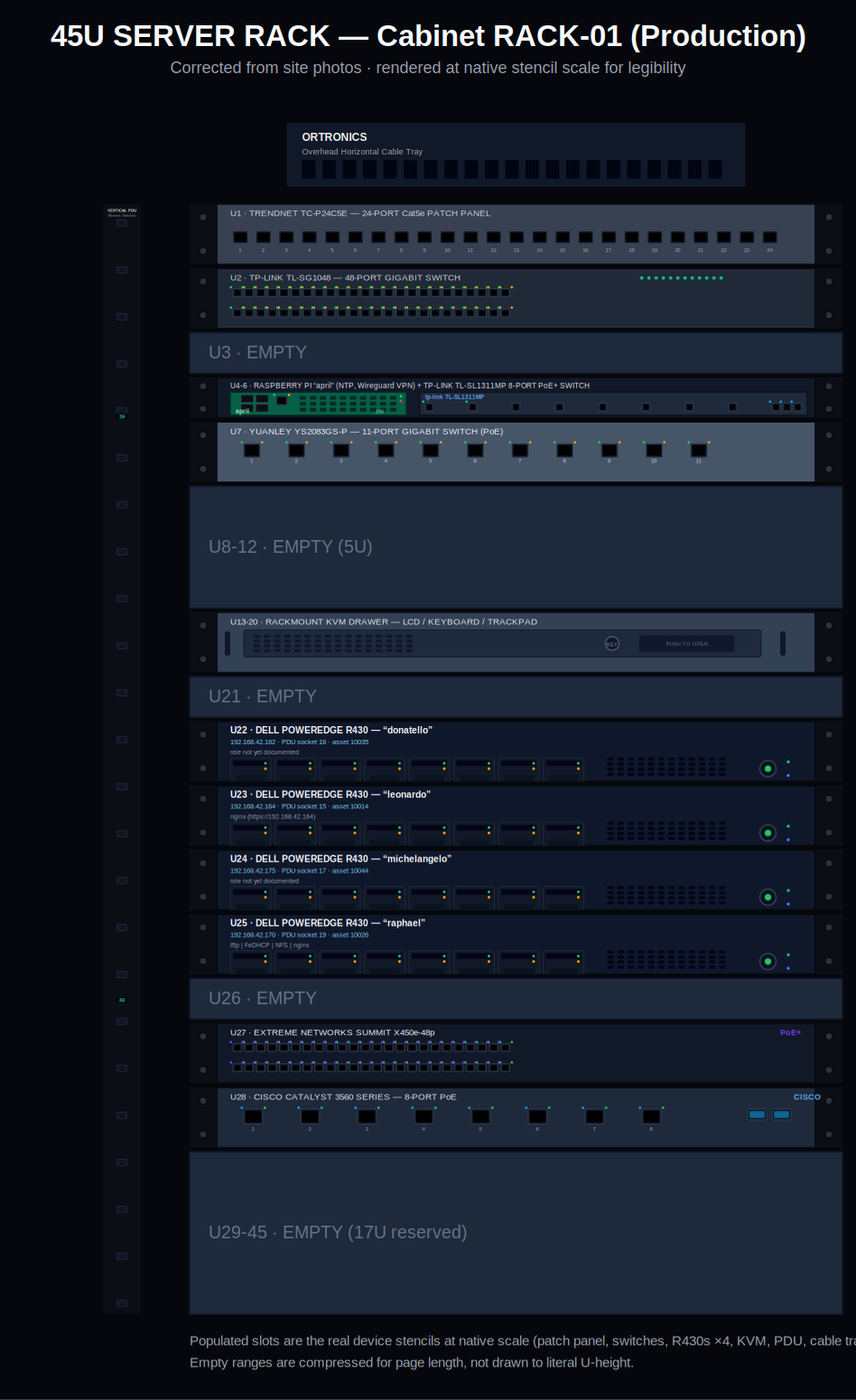

Equipment

All these IP addresses are assigned by DHCP without reservations on the DHCP server for them. Except the switch, which doesn't seem to support DHCP for its management console. TODO: Make reservations on the DHCP server or assign static IPs.

Main IP Assignments

192.168.42.182 donatello - Top Server (NIC 1)
192.168.42.164 leonardo - Upper Middle Server (NIC 1)
192.168.42.175 michelangelo - Lower Middle Server (NIC 1)
192.168.42.170 raphael - Bottom Server (NIC 1)
192.168.42.186 april - Raspberry Pi

Hardware Management Links

https://192.168.42.152 Power Strip IP - username:sysadmin-group password: p...
https://192.168.42.165 idrac-donatello - Top Server's iDRAC)
https://192.168.42.163 idrac-leonardo - Upper Middle Server's iDRAC
https://192.168.42.168 idrac-michelangelo - Lower Middle Server's iDRAC
https://192.168.42.169 idrac-raphael - Bottom Server's iDRAC
telnet://192.168.42.250 sysadmin-group-switch

Switch Port Assignments

?? Top Server
?? Upper Middle Server
?? Lower Middle Server
?? Bottom Server
?? Uplink

Power Socket Assignments

18 donatello Top Server
15 leonardo Upper Middle Server
17 michelangelo Lower Middle Server
19 raphael Bottom Server
?? april Raspberry Pi
22 sysadmin-group-switch
